Резервирование: Матрицы

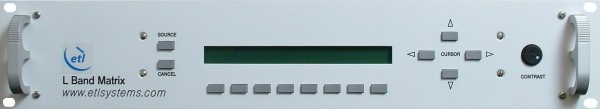

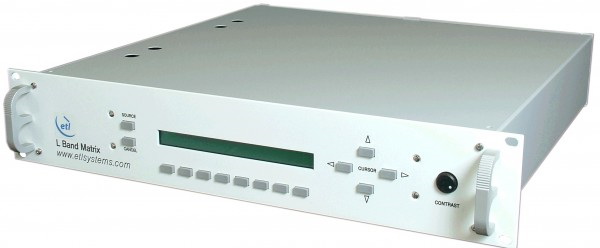

L-band Matrix M0808C2UFL-B7B7-A

Производитель: ETL
Страна: Великобритания

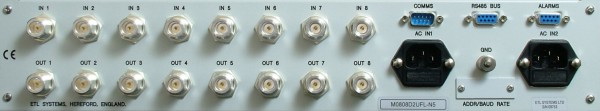

L-band Matrix M0808C2UFL-B7B7-A: 8 Inputs x 8 Outputs Combining with dual redundant power supplies and 75 Ω BNC connectors

ETL has a broad L-band Switch Matrix and L-band Router range for Satellite communications, including the hot-swap NiGMa L-band Matrix which is used for many high resilience high performance applications.

This smaller range of distributive L-band matrix comes in a variety of size configurations which are generally linked to original design applications. The 2U 8x8 L-band Matrix and 3U 16x16 L-band Matrix are standard building blocks for most applications with dual redundant PSU's, a CPU and local control panel. Remote control is via serial or Ethernet.

While some of the L-band Matrix products in this range have hot-swap power supplies, please see our Hot Swap Matrix range for matrices with hot swap of RF modules, CPU's and PSU's.

Non-blocking: this means any input can be routed to any output.

In general our solid state (L-band) matrices are non-blocking.

Full Fan-in Matrix (or fully combining matrix): any input can be routed to any output. Many inputs can be routed to each output. Each input can only be routed to one output. Tends to be more TX.


Capacity 8 inputs x 8 outputs
Frequency Range 850-2150MHz (L-band)
RF Connectors 75 Ω BNC
Flatness ± 2.0 dB
Input Return Loss >10 dB
Output Return Loss >10 dB
Gain 3 dB nominal (± 2 dB)
1 dB Compression 0 dBm
Noise Figure 7.5 dB
Isolation (Adjacent channel) >40 dB typically
Group Delay 2.7ns across L-band
Phase Noise Compliance with IESS phase noise mask
