SWE-DISH® CCT120 Suitcase® Satellite Terminal (50 W Ka-BAND)

Производитель: DataPath Inc. (SWE-DISH)
Страна: США

Get an easy-to-change terminal designed for the present and future – the SWE-DISH CCT120 Suitcase® by Rockwell Collins. Based on innovative modular architecture, it features multiple modules, an antenna system, a transceiver, a controller and a plug-in modem And you can easily replace these for use with current and future SWE-DISH CCT products. You can also choose from different modules supporting different frequency bands, power levels and modem types.

With its unique module ID, the CCT 120 Suitcase’s software automatically recognizes the newly connected module and reconfigures settings – for example, azimuth range – without user intervention. It also gives you easy, one-person operation, an intuitive graphical user interface, trouble-free antenna pointing and auto peaking and a rugged construction.

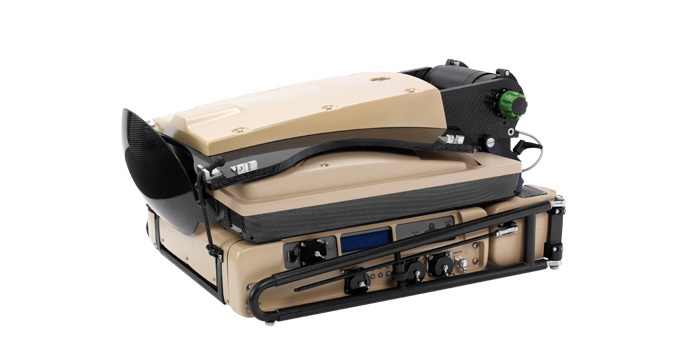

Choose from two packaging options, including a configuration that makes the CCT120 Suitcase small enough to carry on to a commercial airliner.


Deploys fast to save you from a world of trouble.
The Rockwell Collins SWE-DISH CCT120 Suitcase® System with CommuniCase® technology. The quickest-to-air terminal
in the world. Innovative modular architecture creates a line of easy-to-change terminals designed for the present and future – like all CommuniCase technology products, the CCT120 Suitcase System features multiple modules, a plug-in modem, an antenna
system, a controller, and a transceiver, all of which can easily be replaced and used with current and future SWE-DISH CCT products. Different modules supporting different frequency bands, power levels and modem types are available.
Key Features
> Slide-in cassette – makes the easyto-switch multiple modem  feature possible

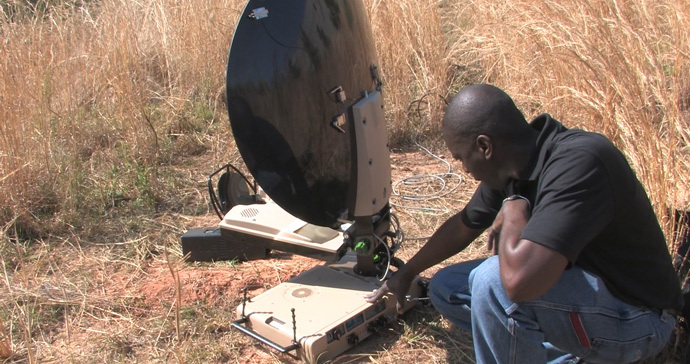

> From case to contact typically in under five minutes – with no tools needed, easy one-man operation, an intuitive GUI, and fully automatic point-andshoot antenna control, it’s easy to see why it’s the world’s fastest terminal
> Compliant to military standards – constructed of rugged materials like carbon fiber and rigorously tested to surpass the toughest conditions and standards

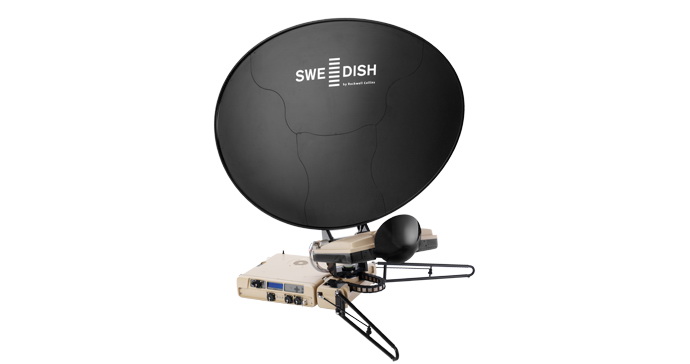

> Small antenna, high transmission data rate – a highly efficient Gregorian dual offset elliptical antenna and feed
system achieves low loss and up to 20 Mbps
> Eutelsat type approved (EA-V057).


EIRP @ Saturation 57.8 dBW
G/T @ 20° Elevation 21 dB/K@11.8 GHz
Polarization X-pol linear, co-pol option
Transmit Frequency 13.75 - 14.50 GHz
Receive Frequency 10.95 - 12.75 GHz
Polarization Range 190°
