Антенны: Терминалы

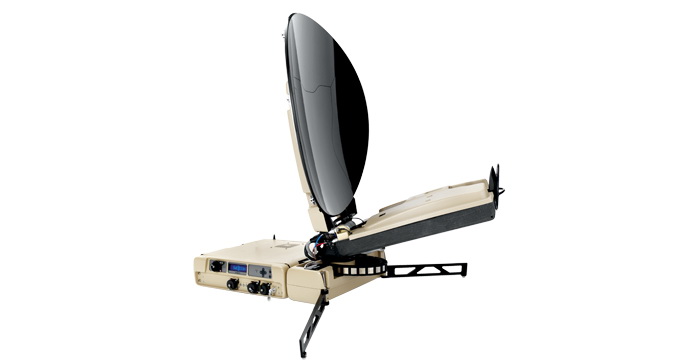

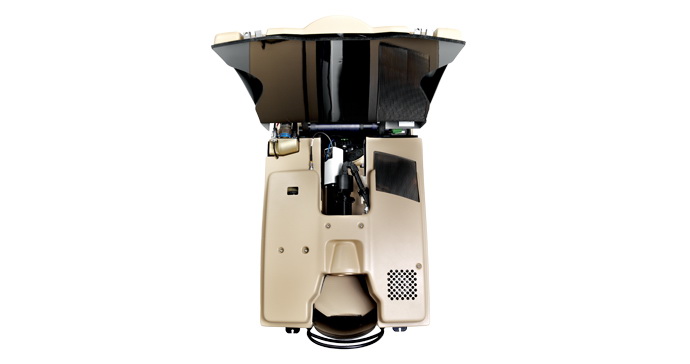

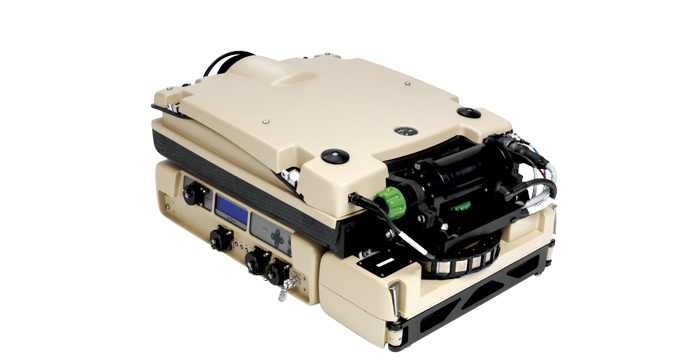

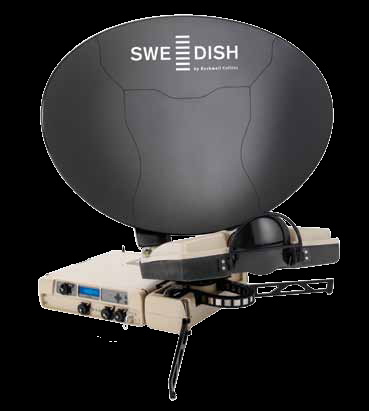

SWE-DISH® CCT90 Suitcase® Satellite Terminal 35 W Ka-BAND

Производитель: DataPath Inc. (SWE-DISH)
Страна: США

Get the next generation of SWE-DISH satellite terminals with the SWE-DISH® CCT90 Suitcase® from Rockwell Collins. The CCT90 Suitcase is one of the world’s quickest-to-air terminals, and, because of its modular design, it’s the most compact terminal of its kind on the market. In addition, you’ll find it offers easy one-person operation, an intuitive graphical user interface, trouble-free antenna pointing and auto peaking and a rugged construction.

The CCT90 features our innovative CommuniCase® technology. With its slide-in cassette, the integrated modem can easily be switched out and plugged in to other CCT products. The unique module ID allows the software to automatically recognize the newly connected module and reconfigures settings – for example, azimuth range – without user intervention.

Choose from two packaging options, including a configuration that makes the CCT90 Suitcase small enough to carry on to a commercial airliner.


EIRP @ Saturation 59.0 dBW
G/T @ 20° Elevation 17.0 dB/K @ 20.7 GHz
Polarization Circular, reversible
Transmit Frequency 30.0 – 31.0 GHz
Receive Frequency 20.2 – 21.2 GHz
