Антенны: Терминалы

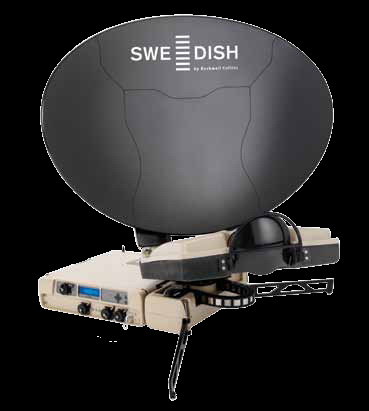

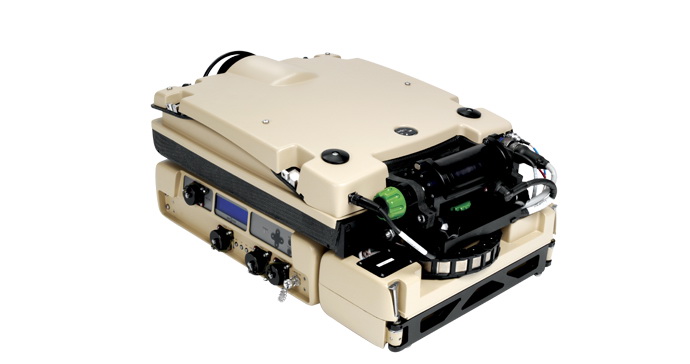

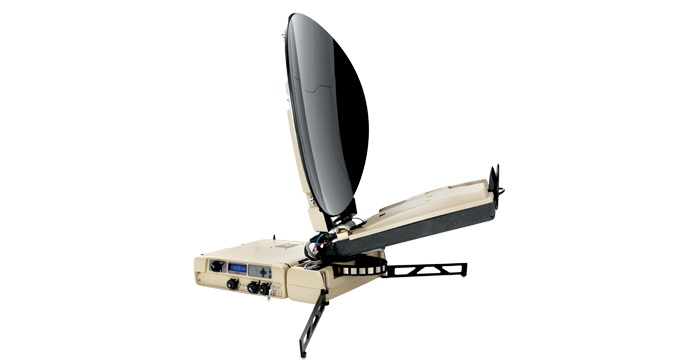

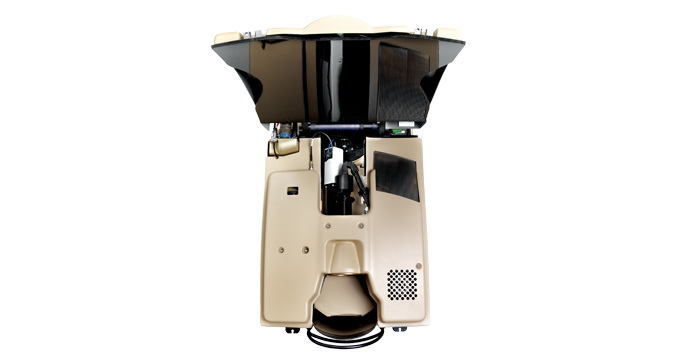

SWE-DISH® CCT90 Suitcase® Satellite Terminal 50 W Ku-BAND

Производитель: DataPath Inc. (SWE-DISH)
Страна: США

Get the next generation of SWE-DISH satellite terminals with the SWE-DISH® CCT90 Suitcase® from Rockwell Collins. The CCT90 Suitcase is one of the world’s quickest-to-air terminals, and, because of its modular design, it’s the most compact terminal of its kind on the market. In addition, you’ll find it offers easy one-person operation, an intuitive graphical user interface, trouble-free antenna pointing and auto peaking and a rugged construction.

The CCT90 features our innovative CommuniCase® technology. With its slide-in cassette, the integrated modem can easily be switched out and plugged in to other CCT products. The unique module ID allows the software to automatically recognize the newly connected module and reconfigures settings – for example, azimuth range – without user intervention.

Choose from two packaging options, including a configuration that makes the CCT90 Suitcase small enough to carry on to a commercial airliner.

Key Features & Benefits

  • Slide-in cassette: Enables the easy-to-switch multiple modem feature.
  • From case to contact in under five minutes: No tools needed, easy one-man operation, an intuitive GUI, and fully automatic point-and-shoot antenna control.
  • Compliant to military standards: Constructed of rugged materials like carbon fiber, rigorously tested to surpass the toughest conditions and standards.
  • Super compact: The smallest terminal on the market, adapts to your specific packaging need.
  • Small antenna, high transmission data rate: A highly efficient Gregorian dual offset elliptical antenna and feed system achieves low loss and up to 10 Mbps.


EIRP @ Saturation 55.0 dBW
G/T @ 20° Elevation 19.3 dB/K @ 11.8 GHz
Polarization Linear
Transmit Frequency 13.75 – 14.50 GHz
Receive Frequency 10.95 – 12.75 GHz
Polarization Range 190°
