Антенны: Fly-Away

SWE-DISH® FA150K Lite Fly-Away Satellite Terminal

Производитель: DataPath Inc. (SWE-DISH)
Страна: США

The Lite version of the combat-proven SWE-DISH® FA150K Fly-Away is designed to meet the IATA weight concept. But you’ll still get the sturdy construction that makes it suitable for fast moving field groups with high requirements on quick and easy deployment. The flight cases are strong and rugged to meet the rough handling during transport.

The FA150K Lite originates from the successful FA150T Fly-Away, but the cage and skid plate have been removed to decrease the overall weight. The FA150K Lite is also available with X-band capability.

Key Features & Benefits
-Quick deployment: Satellite acquisition typically in less than 10 minutes, no tools required.
-Combat proven: Rugged and durable construction.
-Airline checkable: Designed for IATA weight concept.
-High performing antenna: Gregorian offset and carbon fiber.
-Mobility: Designed for easy and quick transportation.
-Flexibility: Optionally use IPT Suitcase as a light, compact and fully integrated HPA and baseband package.

Efficient, high gain and IATA compatible.
The Rockwell Collins SWE-DISH FA150K Lite Fly-Away is  designed to meet the IATA weight concept. The IATA  compatible Fly-Away originates from the successful FA150K Fly-Away, where the cage and skid plate have been removed to decrease the overall weight even further and to enable
repacking in separate IATA flight cases. The flight cases are strong and rugged to withstand rough handling during  transport.
Airline checkable

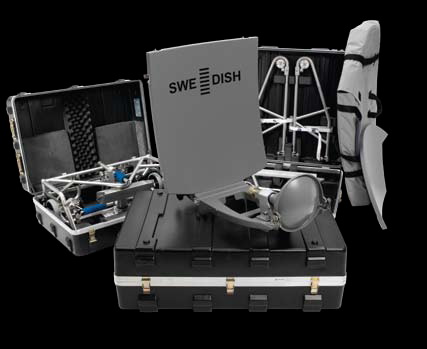

The lightweight antenna system is optimized for quick departure and to be airline checkable. Each case weighs less
than 32 kg (70.5 lbs). During transportation the antenna is fitted into rugged transport cases, with handles for easy transportation at airports or lifting short distances.
Stable construction
Deployment and assembly of the antenna requires no tools, and can be done “gloves on” under severe environmental conditions. The FA150K Lite Fly-Away is quickly deployed, and the satellite typically can be acquired in less than 10 minutes. Packing is equally fast. The integrated True elevation meter makes antenna pointing fast, easy and accurate. Excellent wind stability is achieved by the low antenna placement
and the stainless-steel front legs and rear support. The back support doubles as a holder for an HPA flight case, or the
SWE-DISH IPT Suitcase, which may be interconnected to the FA150K Lite Fly-Away with increased link margins and greater
flexibility as key advantages.
High performing antenna

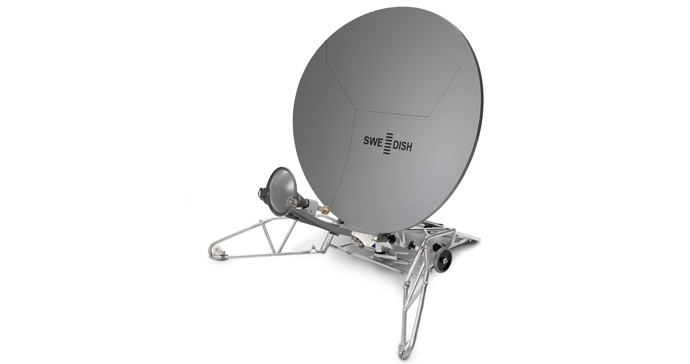

The antenna is a high performance elliptical 1.5 m (59 in)  Gregorian offset antenna. The reflector is made from carbon fiber, and is divided into four lightweight segments for
easy stowing. The dual optics Gregorian antenna concept allows for a small antenna size, combined with the exceptional efficiency, low side lobes, good cross polarization and axial ratio performance. The FA150K Fly-Away is a proven true earth terminal design and is in use worldwide,
often under the most demanding conditions.
