SWE-DISH® FA150K Fly-Away Satellite Terminal

Производитель: DataPath Inc. (SWE-DISH)
Страна: США

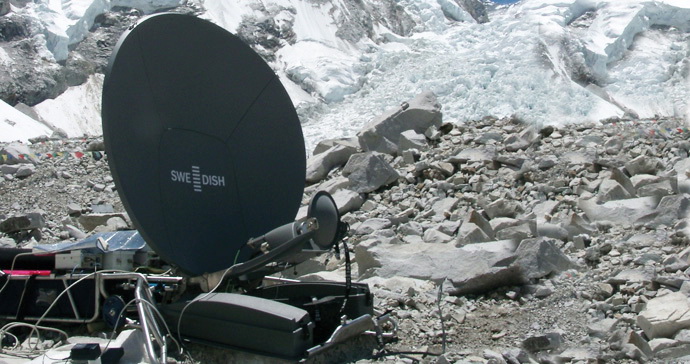

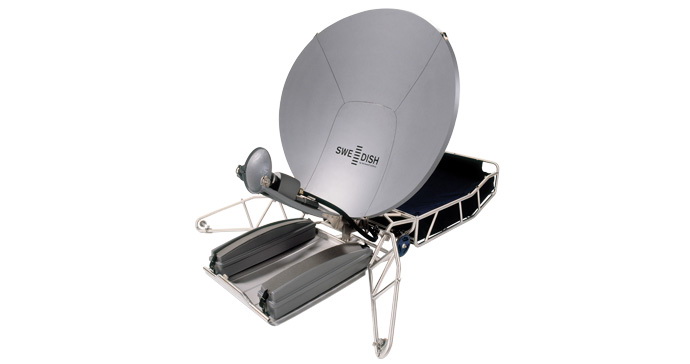

The proven Rockwell Collins SWE-DISH® FA150K Fly-Away is designed from the bottom up to be a rugged, easy-to-transport and quick-to-deploy terminal. The satellite can be acquired in less than 10 minutes. And you’ll get a lightweight antenna that’s optimized to keep package size down and efficiency up, without compromising strength and durability.

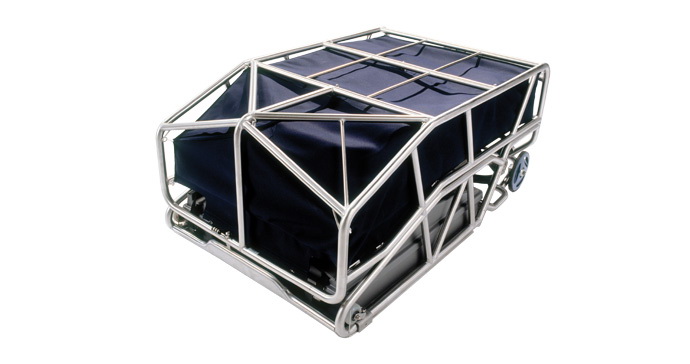

Its extremely rugged cage has patented construction with integrated wheels and skid plate for easy transportation. The FA150K is also the world’s smallest DSNG terminal fulfilling 2-degree spacing without any power restriction. Thanks to the Gregorian offset design, it has an efficiency gain of 80% and is trusted worldwide.

Key Features & Benefits
-Quick deployment: Satellite acquisition typically in less than 10 minutes, also with gloves on.
-Combat proven: Rugged and durable construction.
-High performing antenna: Gregorian offset and carbon fiber.
-Smart packaging: Designed for easy transportation on hard and soft surfaces, using wheels and skid plate.

Antenna Performance:

Antenna Model


Antenna Concept

Gregorian type dual optics; Elliptical 4-piece main reflector in carbon fiber with size 1.5 x 1.35 m (59.1 x 53.1 in), folding feed arm and sub reflector; Base Band case typically 28 kg (61.7lbs)

Side Lobe Performance

29-25 log Ø dBi


Linear orthogonal, <1° accuracy

Polarization Performance

XPD >35 dB

Transmit Performance:


Transmit Frequency

13.75 to 14.50 GHz

Transmit Gain at Mid-band

45.0 dBi

Receive Performance:


Receive Frequency

10.70 to 12.75 GHz

Receive Gain

43.2 dBi


23 dB/K at 20° elevation and 20°C
(68°F), clear sky

HPA/EIRP Capability:


Typical HPA Rating

125 W to 400 W TWTA for DSNG
16-40 W transceiver for datacom

DSNG EIRP Capability

64 dBW to 69 dBW DSNG
55 dBW to 59 dBW datacom

Antenna Travel Range:


Azimuth Range

Manual coarse: ±360°
Turnbuckles mounted: ±25° coarse, ±10°fine

Elevation Range


Platform Leveling:


Pitch and Roll

Built in compensation for pitch and roll by using platform independent reference to true vertical/horizontal

Antenna features:

Azimuth: Coarse and precision fine adjustment

Elevation: Generally 0° - 90° with fine adjustment

Polarization: +/-100°, 1° accuracy, motorized

True elevation meter with 0.1° resolutions

Antenna options:

Three port feed for co-polar operation

Military X-band operation including step tracking

The FA150K Fly-Away antenna is available in an IATA compatible version FA150K Lite

Super stable PLL LNB receive concept for low data rate applications

Transmit frequency coverage from 12.74 GHz

HPA 1:1 redundancy

Additional transmit frequency coverage from 13.00 GHz to 13.75 GHz
