Резервирование: Матрицы

NEXT GENERATION NiGMa L-band Matrix Router - 32x32 NGMC-21-B7

Производитель: ETL
Страна: Великобритания

L-band Matrix 32x32 NGMC-21-B7: 32 Inputs x 32 Outputs Combining Hot-swap NiGMa Series with 75 Ω BNC connectors
ETL has a broad L-band Switch Matrix and L-band Router range for Satellite communications, including the hot-swap NiGMa L-band Matrix which is used for many high resilience high performance applications.

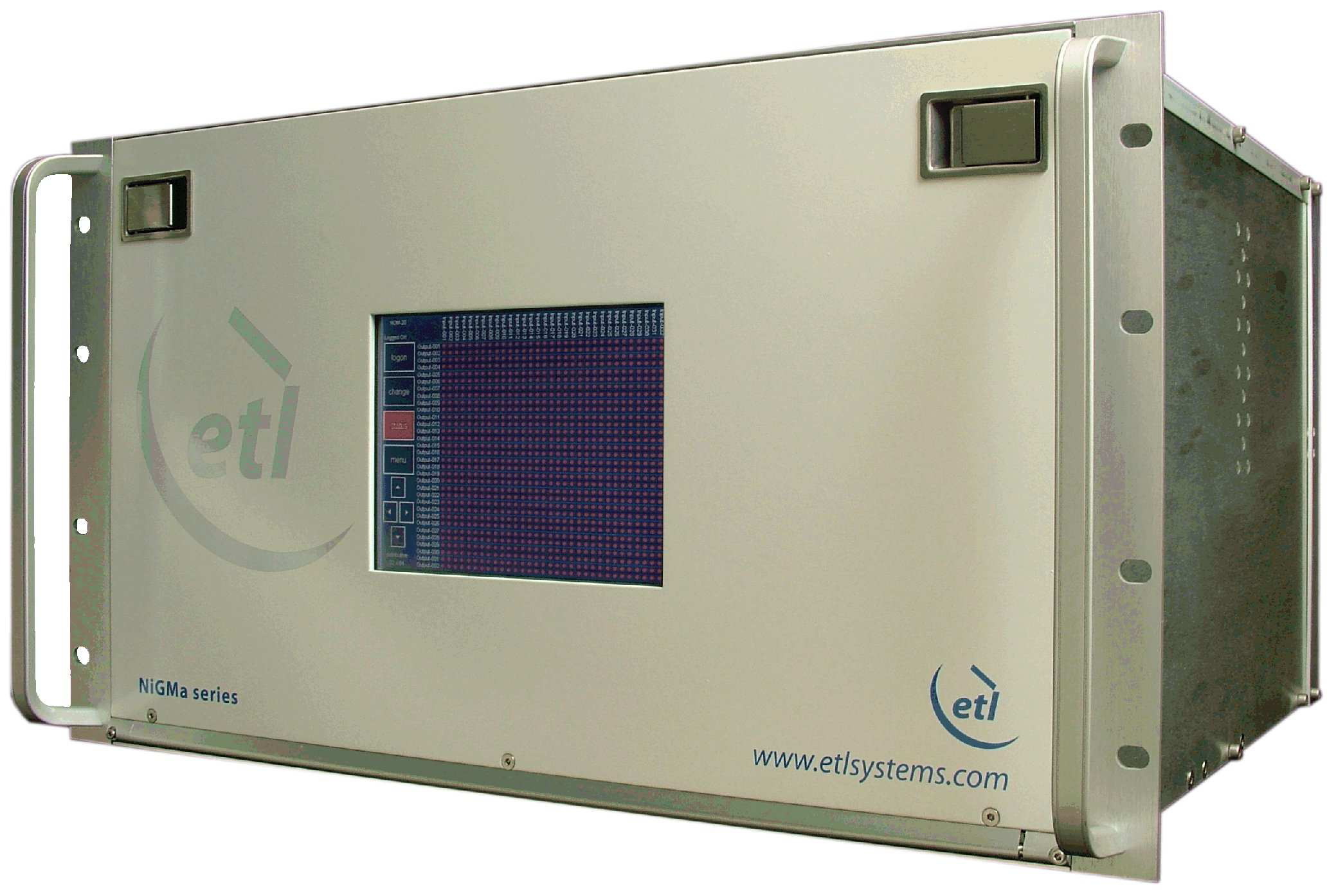

The NiGMa L-band Matrix is housed in a 6U 19" rack enclosure. It has a module capacity of 32 inputs x 32 outputs, but can be part populated to any size, such as those shown below. It can then be hot expanded up to 32 x 32. The NiGMa L-band Router can easily be formed into larger Matrix Systems up to 512x512 by adding additional modules.
A variety of impedances and connector types are available, as shown below.

Now in its 3rd generation, the NiGMa L-band Matrix has proved to be genuinely high performance with excellent flatness or frequency response, excellent isolation, and linearity - a truly leading edge L-band Router.

The NiGMa L-band matrix has hot swap of all active components - RF cards, CPU's and PSU's. In addition the NiGMa L-band Matrix has the designed-in resilience provided by one RF card for each RF input and output, dual redundant CPU's, and dual redundant PSU's.

The NiGMa L-band Matrix also has extensive on-board monitoring - and reporting - of RF card amplifier status, CPU and PSU status and HMI communications.

Non-blocking: this means any input can be routed to any output.

In general our solid state (L-band) matrices are non-blocking.

Full Fan-in Matrix (or fully combining matrix): any input can be routed to any output. Many inputs can be routed to each output. Each input can only be routed to one output. Tends to be more TX.

ETL’s popular high performance NiGMa L-band combining matrix evolves to set new benchmarks for RF performance and leading edge technologies.  The next  generation of NiGMa matrix focuses on improved resilience and performance the impact of failure is minimised

As ETL customers use matrices in mission-critical applications, we understand the importance of redundancy and hot swap. Input and output cards, power supplies, CPU controller cards, fans and the new VGA human interface can all be hot swapped.

New Matrix design means there is one card associated with each input and each output – so failure of a card only affects one channel. For broadcasters, satellite
operators and the defence sector, this provides exceptional resilience. The refined design offers rugged dual redundant power supplies with simple front access,
enhanced CPU change-out, hot-swap fans and new card connectors. Web Browser Interface is standard on an NGMC-21.

Improved RF performance of the NiGMa which provides superior Isolation, frequency response or flatness, and 1 dB GCP levels – helping our customers ensure that their o v e r a l l R F c h a i n s i g n a l p e r f o r m a n c e i s o p t i m i s e d .
Self Diagnostics with continuous monitoring (and reporting) of amplifier status, PSU status (including temperature), fan speed and internal communications is  included as standard. Any problems are rapidly identified and hot swap means they can be addressed in minutes.

NEW FEATURES:

Fast Matrix Card Changeout from front and rear

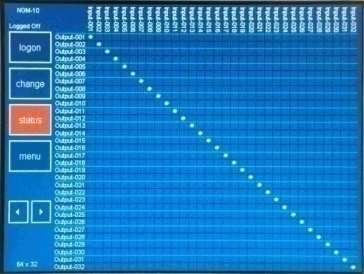

Touchscreen VGA control with security log on for up to 10 users

Aliases (10 character) on front screen to identify signal sources

On board log records all routing changes for each user


Resilience is designed-in

The NiGMa matrix has been designed with resilience in mind. The impact of component failure is minimised and all active components can be hot swapped.
Problems are rapidly identified and can be easily sorted out.

Minimal impact from card failure One card per input and one card per output mean that the impact of card failure is minimised. Cards can be hot-swapped, and hot expansion can take place in single increments.

Minimal impact from CPU failure The matrix contains dual redundant CPU’s which both operate in parallel. If one CPU fails the other automatically becomes the master. CPU’s can be hot-swapped.

Minimal impact from PSU failure Dual redundant PSU’s can be hot-swapped.

Rapid diagnosis of problems The matrix continuously monitors the conditions of amplifiers, CPUs and PSUs. Any faults are immediately reported through the front panel and remotely. Alarms report the specific faults down to component level.

FLEXIBILITY
The Enigma Matrix can be adapted and grown to a number of different sizes

Master Matrix offers routing control from touchscreen or remotely

Hot-Swap Input & Output Matrix Cards on all modules offer easy expansion

Active Splitter & combiners offer patch panel & gain options

All modules offer hot-swap CPUs and PSUs for peace of mind

Характеристики

Capacity 32 inputs x 32 outputs
Frequency Range 850-2150 MHz (L-band)
Gain 0 dB ± 1 dB nominal
Flatness 850-2150MHz / Any 36MHz ± 2.0 dB / ± 0.30 dB
Noise Figure 25 dB typical
1 dB Compression 5 dBm at unity gain
Isolation I/P – O/P 60 dB, typically 70 dB
Isolation I/P – I/P 70 dB
Isolation O/P – O/P 70 dB
Input Return Loss 15 dB typical
Output Return Loss 10 dB typical
Impedance Connectors 75 Ω BNC
