Victor IF / L-band Matrix 8 x 16 Model VTR0816-10-S5S5

Производитель: ETL
Страна: Великобритания

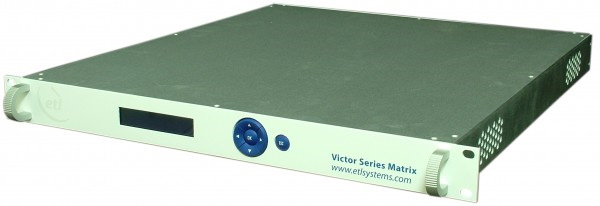

IF / L-band Matrix VTR0816-10-S5S5: 8 Inputs x 16 Outputs Distributive with dual redundant power supplies, LNB powering, variable gain and 50Ω SMA connectors.

8 Inputs x 16 Outputs Distributive Victor IF / L-band Matrix with local and remote control, variable gain and LNB powering, all housed in a compact 1U high shelf.

ETL has a broad L-band Switch Matrix and L-band Router range for Satellite communications, including the hot-swap NiGMa L-band Matrix which is used for many high resilience high performance applications.

This smaller range of distributive L-band Matrix comes in a variety of size configurations which are generally linked to original design applications. The 2U 8x8 L-band Matrix is a standard building block for most applications with dual redundant PSU's, a CPU and local control panel. Remote control is via serial or Ethernet.

ETL’s new Victor Series of IF through L-band mat r ices, operate over the 50-2150MHz frequency range and provide a full fan-out high performance 8x8 matrix with local and remote control in a very compact form factor.

This new design of matrix is ideal for TVRO, smaller teleports and satellite ground stations, providing the flexibility of RF routing. The matrix can be used for L-band, IF, and broadband applications Victor also offers variable gain. Isolation, frequency response and linearity are all at class-leading levels, ensuring that we can offer excellent RF performance for your RF receive chain. Local control is provided via a compact keypad and display; while remote control is available via serial and Ethernet ports. Adjustable RF Monitoring is available on each of the inputs detecting if the signal strength goes above or below a set limit.

Victor brings the normal resilience you would expect from ETL with dual redundant power supplies; and monitoring and alarms for RF amplifier and power supply
status. Victor is well suited to mission critical applications with restricted rack space which preclude using the hot swap NiGMa series matrices.

Характеристики

Capacity 8 inputs x 16 outputs
Routing Distributive,non-blocking
Frequency Range 50-2150 MHz (IF \ L-band)
RF Connectors 50Ω SMA
Flatness (50 –2150 MHz) ±1.75 dB
Flatness (850 –2150 MHz) ±1.4 dB
Flatness (50 –200 MHz) ±0.5 dB
Flatness (Any 36 MHz) ±0.25 dB
Gain (Max Gain Gmax) + 3 dB
Gain (Min Gain Gmin) - 3 dB
Gain Steps 0.25 dB
Input Return Loss 15 dB typ 11 dB min
Output Return Loss 16 dB typ 12 dB min
Linearity (1dB GCP) 3 dBm typical, 0 dBm minimum (Any gain setting)
Linearity (IP3) 12 dBm minimum
Linearity (IP2) 20 dBm minimum
Isolation (I/P - O/P) 60 dB typ
Isolation (I/P - I/P) 75 dB typ
Isolation (O/P - O/P) 75 dB typ
Group Delay ≤ 1.0 ns
AC Power 85-264Vac 47-63Hz, Fused 2A
Noise Figure 17 dB at max gain setting 21 dB at unity gain setting 25 dB at min gain setting
